Complete Motor Diagnostics Tool & Report
Enter measured current, voltage, vibration, temperature, and insulation readings. Review the result, evidence limits, and next steps.
Enter Motor Readings
Fill required fields, validate boundaries, then run diagnostics. Every result includes interpretation, uncertainty, and next-step action.
Example values are prefilled. Replace them with measured data; scores are triage heuristics, not a safety verdict.
Minimum recommended trend for confident decision is 14-30 days.
Improves detection for localized thermal hotspots.
Enables drift-based reasoning instead of single-point guess.
Result Block
Output is deterministic for same inputs and always includes interpretation, boundaries, and actionable next step.
Empty state
No result yet. Enter your motor data in the tool block and click Run motor diagnostics.
Report Summary: Core Conclusions, Key Numbers, and Fit Boundaries
This section answers the know-intent quickly: what matters most, which numbers drive decisions, and where this approach should not be used.
Recommended terminal voltage-unbalance ceiling
DOE guidance cites NEMA practice that values above 1% require derating discussion and root-cause checks.
Current-unbalance amplification factor
DOE reports current unbalance can be far out of proportion to voltage unbalance, driving thermal and torque stress.
Maintenance-cost / downtime reduction range
DOE O&M benchmarks for functional predictive-maintenance programs; transferability depends on site maturity.
Energy reduction potential in motor-driven systems
DOE guidebook estimate for applying mature, cost-effective efficiency practices across motor systems.
Latest ISO diagnostics/prognostics guideline refresh
ISO 13381-1 (2025-09) and ISO 13379-1 (2025-10) were both updated, so legacy thresholds and methods should be explicitly version-tagged.
NIST AI 600-1 governance signal for AI diagnostics
When diagnostics include AI-generated explanations, governance scope must include risk mapping and ongoing controls, not only model accuracy.
| Dimension | Known and usable today | Use with caution | Public evidence gap |
|---|---|---|---|
| Electrical health | Terminal voltage imbalance at or below 1% plus current-ratio trend is usable for first-pass triage. | Short capture windows and commissioning transients can overstate imbalance severity. | Pending confirmation / no reliable public data for cross-vendor embedded-diagnostics comparability. |
| Mechanical health | Vibration trends over time expose drift patterns and are more reliable than snapshots. | Very low-load or irregular route measurements may under-represent defect severity. | Pending confirmation / no reliable public data for open, class-specific vibration zone tables without paid standards. |
| Insulation aging | Corrected-temperature IR plus PI trend is actionable for risk staging. | Raw one-point MΩ values without correction can be misleading. | Pending confirmation / no reliable public data for one universal shutdown threshold across humidity and contamination regimes. |
| Personnel competency | ISO 18436 qualification baseline can be used to define who can sign high-impact diagnostics. | Mixed certification editions across sites can create interpretation drift. | Pending confirmation / no reliable public data for one universally comparable competency benchmark across all plants. |
| AI/OT-assisted diagnostics | AI can accelerate anomaly ranking and operator handoff when governance controls are active. | Generated explanations can be plausible but wrong if telemetry integrity or context-fit checks are weak. | Pending confirmation / no reliable public data for open benchmark datasets that validate explanation fidelity across motor duty cycles. |
Secondary CTA
Need follow-up tuning or an engineering sanity check before implementation?
Methodology and Evidence Layer
The tool logic below is intentionally conservative and designed for maintenance prioritization, not legal compliance declaration.
Inputs are normalized into risk bands, weighted into a composite score, then gated by evidence-confidence checks to prevent overconfident decisions on thin data.
• Measurements are from representative load conditions.
• Instrument calibration is valid for this maintenance cycle.
• Electrical, mechanical, and thermal signals are interpreted together, not in isolation.
• Unknown values are explicitly kept visible; this page does not auto-fill missing evidence.
• Source register refresh cadence: every 90 days.
• Standard-status checkpoint (IEEE/ISO/NEMA): every quarter or after major outage investigations.
• Thresholds remain site-tunable and should be aligned with OEM manuals.
• Items lacking open reproducible benchmarks are marked as evidence gaps.
• Last source review on this page: October 13, 2026.
• Current ISO status pages were checked on October 13, 2026; individual source dates appear in the register above.
| Concept | What it is | Use when | Do not use when | Refs |
|---|---|---|---|---|
| Condition monitoring programme | A structured programme for setting up machine monitoring procedures across assets. | Use when defining fleet-wide sampling cadence, data ownership, and escalation governance. | Do not use as proof that one asset is safe to restart without diagnostic evidence. | S11 |
| Diagnostics interpretation | Interpreting measured inputs/outputs to choose suitable fault-diagnosis approaches for a machine context. | Use for triage and root-cause direction after representative measurements are collected. | Do not use as direct remaining-life prediction or legal compliance attestation. | S9 |
| Prognostics | A requirements-driven process for estimating future condition using validated data characteristics and behaviour models. | Use when teams need remaining-life forecasts with explicit data quality and model assumptions. | Do not infer prognosis quality from snapshot diagnostics with insufficient trend evidence. | S10 |
| Personnel qualification | Defined training, experience, and examination baseline for vibration monitoring and diagnostics personnel. | Use when assigning responsibility for high-impact interpretations and acceptance decisions. | Do not assume cross-site equivalence when certification edition or competency category is unknown. | S12, S18 |
| AI and OT governance | Risk-managed AI usage with OT security controls, evidence traceability, and lifecycle monitoring. | Use when cloud/AI analytics inform maintenance prioritization or operation constraints. | Do not let generated explanations bypass telemetry integrity checks or engineering sign-off. | S14, S15, S16 |
| ID | Source | Date context | How used |
|---|---|---|---|
| S1 | IEEE SA: IEEE 43-2013 insulation resistance standard metadata | Board approval 2013-12-11, published 2014-03-06, inactivated 2024-03-21 | accessed October 13, 2026 | Supports insulation/PI method context and clarifies that standard status changed to Inactive-Reserved in 2024. |
| S2 | ISO 20816-1:2016 official standard page | Published 2016-11; confirmed 2021-06-30; revision planned 2024-06-24 | accessed October 13, 2026 | Confirms the 2016 edition lineage and revision plan; see S3 for its replacement publication stage. |
| S3 | ISO 20816-1 Edition 2 publication status | Edition 2 entered publication stage 60.00 on 2026-10-07 | accessed October 13, 2026 | ISO says the replacement is in final production; keep thresholds version-tagged and revalidate after publication. |
| S4 | US DOE AMO tip sheet: Eliminate Voltage Unbalance | DOE AMO Motor Systems tip sheet | accessed October 13, 2026 | Provides 1% terminal-voltage recommendation, derating guidance, 6x-10x current amplification context, and thermal impact examples. |
| S5 | US DOE FEMP: O&M Best Practices Guide, Chapter 5 | Release 3.0 chapter extract | accessed October 13, 2026 | Provides predictive maintenance outcome benchmarks (cost, downtime, and breakdown reduction ranges). |
| S6 | US DOE Pumping Systems Tip Sheet #5 (condition monitoring) | DOE tip sheet text | accessed October 13, 2026 | Used for method boundaries: vibration trends over time are more meaningful than single snapshots. |
| S7 | ANSI/NEMA MG 1-2016 (Revision 1, 2018) Part 0 watermark PDF | ANSI approval date shown: 2021-06-15 | accessed October 13, 2026 | Supports standard-lineage checks and notes that revision text references ISO 20816 and vibration-limit update items. |
| S8 | US DOE guidebook: Continuous Energy Improvement in Motor Driven Systems | DOE guidebook chapter content | accessed October 13, 2026 | Supports management-level tradeoffs: mature motor-system programs can deliver significant energy reduction potential. |
| S9 | ISO 13379-1:2025 condition monitoring and diagnostics general guidelines | Published 2025-10 (stage 60.60) | accessed October 13, 2026 | Defines boundaries for diagnostic interpretation and selecting suitable diagnostic approaches. |
| S10 | ISO 13381-1:2025 prognostics general guidelines and requirements | Published 2025-09 (stage 60.60) | accessed October 13, 2026 | Defines prognostics requirements and prevents treating snapshot diagnostics as remaining-life proof. |
| S11 | ISO 17359:2018 machine condition monitoring programme guidance | Published 2018-01; confirmed 2023-10-12 (stage 90.93) | accessed October 13, 2026 | Defines programme-level setup expectations before teams scale monitoring across asset fleets. |
| S12 | ISO 18436-2:2014 personnel qualification for vibration diagnostics | Published 2014-05; confirmed 2019; current edition pending replacement by ISO/FDIS 18436-2 | accessed October 13, 2026 | Adds competency boundary: diagnostic quality depends on trained personnel and not only sensor volume. |
| S13 | ISO ICS 17.160 status board (13373/18436/13379/13381 families) | Shows ISO 13373-9:2017 withdrawn and ISO/FDIS 13373-9 at stage 50.00; ISO/FDIS 18436-2 at stage 50.00 | accessed October 13, 2026 | Used to show which electric-motor vibration and personnel standards are in transition versus stable. |
| S14 | NIST AI Risk Management Framework program page | AI RMF 1.0 released 2023-01-26; GenAI profile release noted 2024-07-26; critical infrastructure profile concept note 2026-04-07 | accessed October 13, 2026 | Supports governance boundary for AI-assisted diagnostics and risk-managed deployment workflows. |
| S15 | NIST AIRC technical reports index (AI 600-1 context) | NIST AI 600-1 listing: July 2024; states 13 risks and more than 400 actions | accessed October 13, 2026 | Provides concrete risk-and-action scale for AI-assisted diagnostic governance depth. |
| S16 | NIST SP 800-82 Rev.3 Guide to Operational Technology Security | Published 2023-09; Rev. 4 initial public draft posted 2026-09-21, comments due 2026-11-30 | accessed October 13, 2026 | Adds OT data-integrity and reliability constraints for connected monitoring pipelines in industrial environments. |
| S17 | IEC 60034-27-4:2018 rotating machines insulation/PI measurement | Publication date 2018-01-24; stability date 2029 | accessed October 13, 2026 | Adds insulation measurement baseline and lifecycle horizon for long-term test-procedure governance. |
| S18 | ISO/FDIS 18436-2 official status page | FDIS stage 50.00 recorded 2026-10-08 | accessed October 13, 2026 | Confirms the current revision is in the approval phase and will replace ISO 18436-2:2014. |
| Standard | Date marker | What changed | Decision impact | Refs |
|---|---|---|---|---|
| IEEE 43-2013 | 2013-12-11 / 2014-03-06 / 2024-03-21 | Board approval, publication, then status changed to Inactive-Reserved. | Do not treat one static IR threshold as universal compliance proof; verify current internal procedure before release decisions. | S1 |
| ISO 20816-1:2016 → Edition 2 | 2016-11 original edition; replacement entered publication 2026-10-07 | Edition 2 is at stage 60.00 (under publication); ISO describes it as in final production steps and says it will replace the 2016 edition. | Record the edition used by each site and schedule threshold revalidation when the replacement is published. | S2, S3 |
| ANSI/NEMA MG 1-2016 Rev.1 (2018) | ANSI approval 2021-06-15 | Revision lineage includes ISO 20816 reference and vibration-related update items. | Record exactly which MG 1 revision the site, OEM contracts, and warranty clauses reference. | S7 |
| ISO 13379-1:2025 | 2025-10-02 | New diagnostics-guideline edition published at stage 60.60. | Document which diagnostic-interpretation edition each rule set uses before comparing outcomes across years. | S9, S13 |
| ISO 13381-1:2025 | 2025-09-02 | New prognostics edition published with explicit requirements language. | Do not claim remaining-life confidence from snapshot data without prognosis workflow requirements. | S10, S13 |
| ISO 18436-2:2014 → ISO/FDIS 18436-2 | 2014-05 current edition; revision stage 50.00 recorded 2026-10-08 | The replacement is in the approval phase and will replace the 2014 edition. | Track competency matrix by standard edition to avoid mixed qualification assumptions across plants. | S12, S18 |
| IEC 60034-27-4:2018 | 2018-01-24 publication; stability date 2029 | Insulation resistance/PI measurement standard has a published stability horizon. | Useful for defining test-procedure governance windows in long-life motor fleets. | S17 |
| Topic | Known evidence | Evidence gap | Current treatment | Next verification step | Status | Refs |
|---|---|---|---|---|---|---|
| Cross-vendor embedded analytics comparability | Vendor-native diagnostics provide fast alerts and trend features per platform. | Pending confirmation / no reliable public data for equivalence across vendors and firmware versions. | Used as prioritization input only, never as standalone release-to-service proof. | Run at least 90-day site benchmark against offline tests before policy lock-in. | Pending confirmation / no reliable public data | S8, S14, S15 |
| Vibration zone numeric boundaries by machine class | ISO 20816 provides framework and class-based interpretation requirements. | Full zone tables are not fully open-access in public pages. ISO 20816-1:2016 remains published and marked to be revised; its Edition 2 successor entered publication stage 60.00 on 2026-10-07. | Page keeps conservative defaults and explicitly requires class/OEM tuning before final action. | Map each critical asset to class + mounting condition, version-tag thresholds, and revalidate at each lifecycle milestone. | Pending confirmation / no reliable public data | S2, S3, S7, S13 |
| Insulation resistance shutdown trigger universality | IEEE 43 describes IR/PI procedures and interpretation context for rotating machines. | No single publicly reproducible threshold fits every humidity, temperature, contamination, and voltage class. | <20 MΩ is treated as urgent review boundary, not automatic shutdown command. | Require corrected-temperature retest and trend comparison before irreversible decisions. | Conditionally usable; site validation required | S1, S17 |
| Personnel competency equivalence across sites | ISO 18436-2 defines training, experience, and examination requirements for vibration diagnostics roles. | Pending confirmation / no reliable public data for one universally comparable competency baseline across mixed certification timelines. | Treat complex diagnosis as review-required when evaluator competency and method category are unclear. | Build a site-level competency matrix aligned to current and incoming 18436 editions before automating escalation rules. | Pending confirmation / no reliable public data | S12, S18 |
| AI-assisted explanation reliability in OT operations | NIST AI RMF and AI 600-1 provide governance functions, risk categories, and mitigation actions. | Pending confirmation / no reliable public data for motor-diagnostics-specific benchmark sets that validate AI explanation fidelity across operating regimes. | AI outputs are used for triage notes only and require human engineering sign-off for stop/run decisions. | Introduce validation sets by duty cycle, plus periodic OT security and data-integrity review gates. | Pending confirmation / no reliable public data | S14, S15, S16 |
Comparison, Tradeoffs, and Risk Controls
Compare diagnostic options, then map risk-impact with explicit mitigation actions.

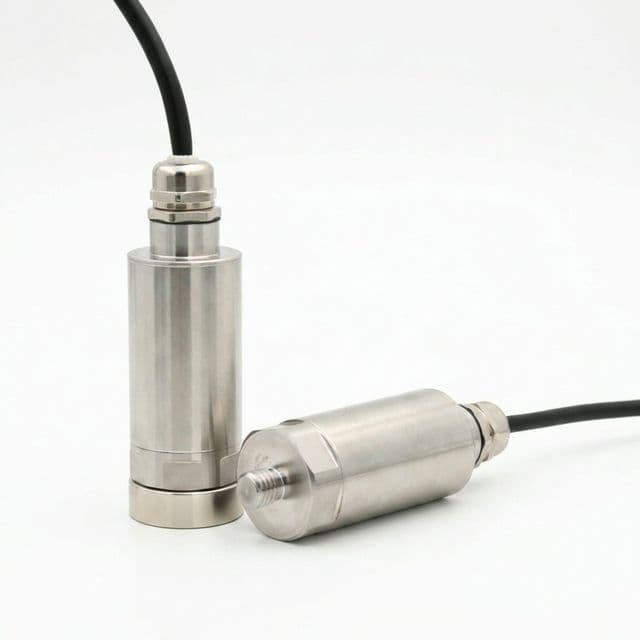

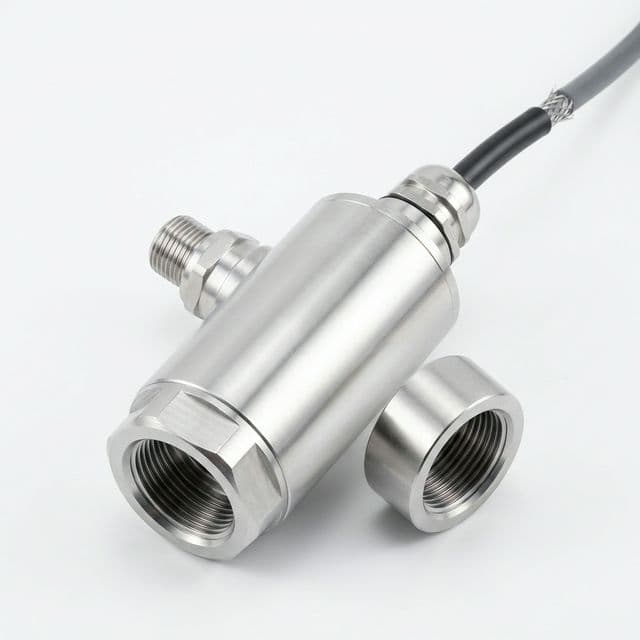

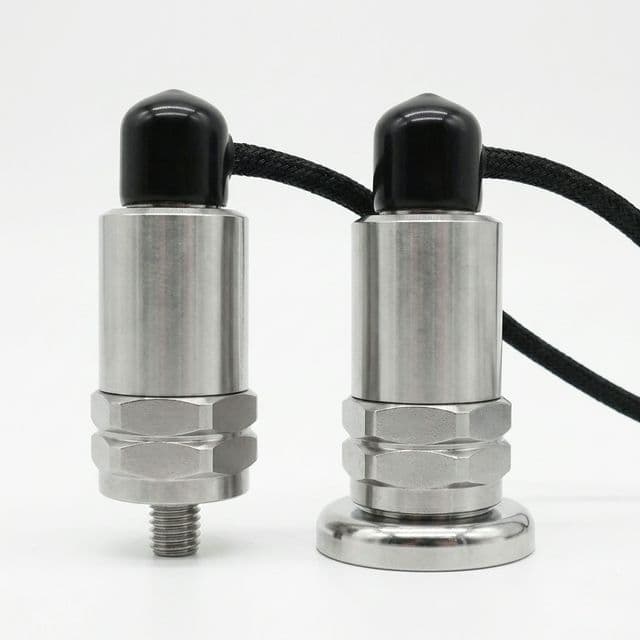

| Method | Best at detecting | Latency | Cost profile | Boundary | Refs |
|---|---|---|---|---|---|
| Current signature trend (online) | Load mismatch, rotor asymmetry, phase stress drift | Hours to days | Low capex / low opex | Use with caution for startup transients; check repeated terminal measurements before operational derating decisions. | S4, S6 |
| Vibration route-based monitoring | Bearing wear, alignment issues, looseness | Minutes to weeks | Medium capex / medium opex | Trend history is more reliable than one-time snapshots; class-specific zone interpretation and standard-version tagging are required. | S2, S3, S6, S13 |
| Insulation resistance + polarization index | Moisture, contamination, winding degradation trend | Shift to monthly | Low capex / medium labor | Offline windows and corrected-temperature interpretation are mandatory; avoid one-point shutdown decisions and keep procedure revision tags explicit. | S1, S17 |
| Infrared thermography audit | Hotspots in terminals, stator zones, cooling imbalance | Minutes | Medium capex / low opex | Emissivity setup and representative load condition strongly affect interpretation confidence. | S4, S6 |
| Drive-integrated diagnostics analytics | Fast trend alarms and fleet-level anomaly ranking | Near real-time | Low incremental capex / low opex | Pending confirmation / no reliable public data for cross-vendor comparability and alarm equivalence; AI or connected pipelines require explicit OT/AI governance controls. | S8, S14, S15, S16 |
| Option | Best-fit organization | Strength | Limit | Decision note |
|---|---|---|---|---|
| Portable test toolkit only | Small plant, low asset count | Low upfront spend | Low trend continuity and reporting depth | Good starter, weak for fleet-level governance |
| CMMS plugin workflow | Mid-size maintenance orgs | Better work-order integration | Signal quality depends on manual discipline | Strong if process maturity is already present |
| Drive-native analytics only | Sites with standardized drive stack | Near real-time alarming | Cross-vendor comparability often unclear | High speed, but verify benchmark transparency |
| Hybrid triage page + engineering review | Teams balancing speed and evidence traceability | Fast decision + transparent assumptions | Still needs plant-specific validation plan | Best when decisions require both action and audit trail |
| Decision | Upside | Downside | Counterexample / limit | Execution rule | Refs |
|---|---|---|---|---|---|
| Apply immediate derating once voltage unbalance exceeds 1% | Reduces overheating exposure and warranty-risk escalation. | Can reduce throughput if the condition is transient or measurement-noisy. | A temporary commissioning transient may exceed 1% without persistent supply defect. | Confirm at motor terminals over a stable operating window before long-duration derating. | S4, S7 |
| Trigger shutdown on low insulation reading | Lowers probability of catastrophic winding failure propagation. | False shutdown risk if reading is not temperature-corrected or lacks trend context. | Single-point reading after environmental change can misrepresent true insulation health. | Use corrected-temperature and PI/trend evidence before final stop/restart decisions. | S1 |
| Scale full predictive-maintenance stack plant-wide | DOE benchmarks show strong potential reductions in downtime and maintenance costs. | Requires tooling, training, and governance overhead before payoff stabilizes. | Low-criticality assets may not justify full-stack instrumentation immediately. | Start with high-consequence assets, then expand after measured ROI validation. | S5, S8, S11 |
| Use snapshot vibration checks as final go/no-go | Fast and low effort for immediate triage. | Higher false-negative/false-positive risk when load and route conditions vary. | Low-load snapshots can hide defects visible only under representative duty. | Treat snapshot as screening only; anchor major decisions on trend progression. | S2, S6, S9, S10 |
| Accept AI-generated diagnostic explanation without OT controls | Fast narrative output for maintenance communication. | Can hide data-integrity, model-drift, and context-fit failures in high-consequence operations. | A plausible but incorrect explanation can delay root-cause isolation when raw telemetry quality is degraded. | Require human review, evidence links, and OT security controls before AI explanations can affect stop/run decisions. | S14, S15, S16 |
High-impact and high-likelihood items are elevated to action blockers in this page’s recommendation logic.
| Risk | Impact | Likelihood | Mitigation |
|---|---|---|---|
| Over-trusting one-point insulation reading | High | Medium | Apply corrected-temperature procedure, compare PI/trend history, and do not treat a single reading as a final shutdown order. |
| Ignoring voltage unbalance until it reaches 2%+ | High | Medium | Use >1% as corrective-review trigger, then confirm terminal measurements and phase loading before extended full-load operation. |
| Snapshot-only vibration decision at low or unstable load | High | Medium | Treat snapshots as screening only; trend amplitude/frequency over time before high-consequence actions. |
| Applying one-size thresholds across all motor classes | Medium | High | Map assets to ISO class, mounting condition, and OEM policy; keep deviations documented in a local threshold register. |
| Trusting connected/AI diagnostics without OT data-integrity controls | High | Medium | Use NIST OT security controls, keep human sign-off for high-impact actions, and maintain versioned validation datasets. |
Illustrative Diagnostic Scenarios
These guide examples use assumed values; they are not customer cases, field measurements, calculator test results, or instructions to stop or continue operating a motor.
| Scenario | Assumptions | Process | Outcome |
|---|---|---|---|
| Packaging line induction motor | 82% load, vibration 3.0 mm/s, insulation >100 MΩ, stable ambient condition | Tool run + 21-day trend + weekly vibration route check + monthly insulation spot test | Stable status; low-cost monitoring plan recommended with no immediate production interruption. |
| Conveyor motor with rising current | Current ratio 118%, voltage imbalance 2.3%, thermography unavailable | Tool run + phase balance verification + torque/load check + thermal scan scheduling | Watchlist to critical boundary; expedited root-cause sprint recommended within 48 hours. |
| Warehouse fan motor in dusty zone | Ambient 44C, starts/hour 34, insulation trend sliding from 85 to 35 MΩ | Tool run + cleaning plan + insulation trend correction + enclosure airflow audit | Watchlist status with high thermal aging risk; budget prioritize ingress and cooling correction. |
| Critical process pump motor | Vibration 5.9 mm/s, winding 128C, insulation 8 MΩ, 24/7 operation | Tool run + immediate maintenance escalation + backup asset activation + failure analysis booking | Critical status; immediate controlled shutdown planning path triggered. |
Common Questions and Next Steps
Answers to common questions and practical next steps for maintenance, reliability, and operations teams.
A complete review combines terminal voltage and current, representative vibration trends, winding temperature, and insulation testing with load history and the applicable OEM limits. This tool screens part of that evidence; it does not replace a plant-specific failure analysis.
Advanced monitoring adds repeat measurements and operating context to a first-pass diagnostic. Compare readings under representative load, track changes over time, and investigate persistent deviations before changing maintenance policy.
Measure phase voltages at the motor terminals and calculate imbalance against their average. The DOE reference recommends keeping terminal voltage imbalance at or below 1%; confirm readings over a stable operating window and check applicable motor and site rules before derating.
Scope and Method (5)
What does a complete motor diagnostics review include?
A complete review combines terminal voltage and current, representative vibration trends, winding temperature, insulation tests using the applicable procedure, load and start history, and OEM/site limits. This tool screens a subset of those inputs and flags where more evidence is needed.
What does advanced motor monitoring add beyond a snapshot?
Monitoring adds repeat measurements and operating context over time. Compare readings at representative loads and track trends before treating a single result as a fault diagnosis.

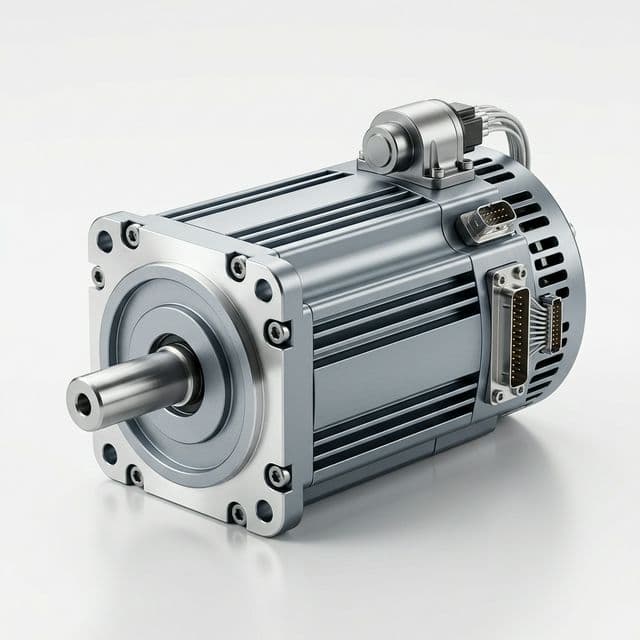

Which motor types does this tool support?
The tool accepts induction, PMSM, and BLDC motors as triage inputs. Its outputs remain operational heuristics and should be checked against the motor and drive manufacturer guidance.
Can this tool replace a full failure analysis?
No. It helps prioritize the next inspection or measurement; root-cause analysis still requires validated instruments, operating history, and engineering review.
Why does operating context matter when comparing readings?
Load, starts per hour, ambient temperature, mounting, and measurement location can change the meaning of a reading. Record those conditions so comparisons use like-for-like operating points.
Tool Output Interpretation (4)
What should I do if the status is inconclusive?
Collect at least 14 days of trend data, add thermography or route-based vibration evidence where appropriate, then rerun with updated inputs.
How should I read the confidence score?
Confidence reflects evidence completeness, not failure probability. Trend depth and baseline coverage can increase confidence, but do not prove that a motor is safe to run.
What if vibration looks normal but current is high?
Treat that as a mixed signal. Check phase balance, load, and thermal trends before concluding that the motor is healthy.
Can a low insulation reading automatically trigger shutdown?
No. It is an urgent-review trigger in this tool. Final shutdown decisions require the applicable temperature-corrected retest, polarization-index or trend context, and site policy.
Execution and Decisions (5)
What is the minimum data set for practical use?
Use rated and measured current, voltage imbalance measured at the motor terminals, vibration readings over time, winding temperature, insulation resistance, and at least a 14-day trend window when available.
How often should I rerun diagnostics?
A practical starting cadence is weekly for stable assets and every 24–72 hours for watchlist assets, plus a rerun after mitigation or a material change. Follow the OEM and site maintenance policy.
Are vibration boundaries universal across all three-phase motors?
No. The page uses conservative screening defaults. Map the asset class, mounting condition, and OEM limits before setting an operating policy.
How can I share the diagnostic tool with an operations team?
Share the canonical electric motor diagnostics page and include the measured values, operating conditions, and source references used for the review.
Can AI-generated explanations be used as final stop/run decisions?
No. Use them as triage notes only. High-impact decisions require traceable telemetry checks, OT security controls, and human engineering sign-off.
Primary CTA
Convert diagnostic output into an executable maintenance decision plan with your plant constraints.
